Compact USB Camera Module 3.2 Megapixels (3.2M)
Equipped with Global Shutter CMOS Sony IMX900
Overview
The ID3M2-MDL Series is a 3.2-megapixel USB output camera supporting an M12 lens mount.
It is compatible with both USB 2.0 and USB 3.0 interfaces.
Thanks to its compact size and light weight, it is suitable for embedded systems and a wide range of other applications.
Features
・Supports USB 2.0 / USB 3.0 output
・Equipped with Global Shutter CMOS
・External trigger shooting supported
・M12 lens mount

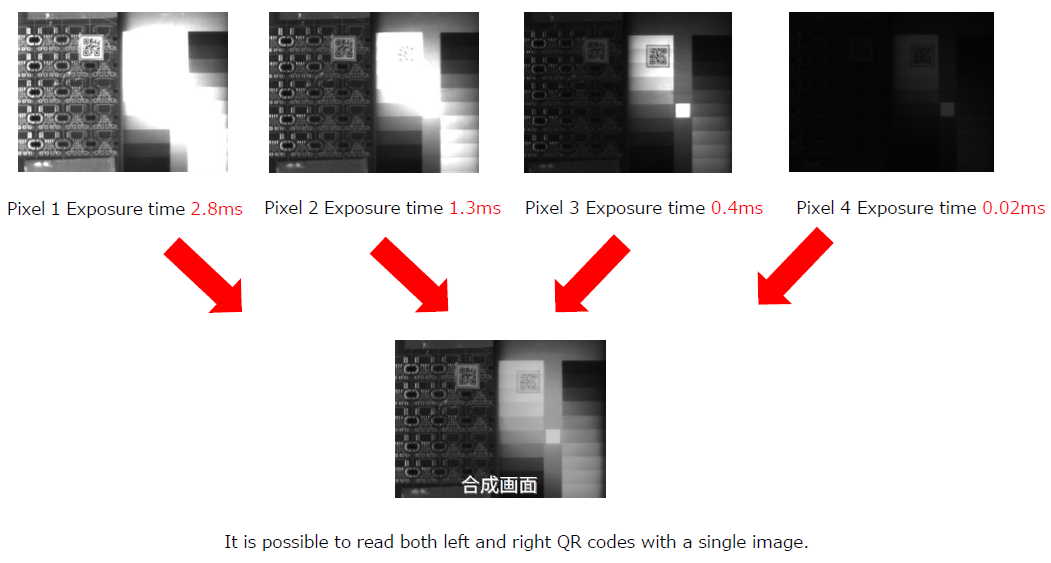

・Four Parallel Exposure function (available only on monochrome models)

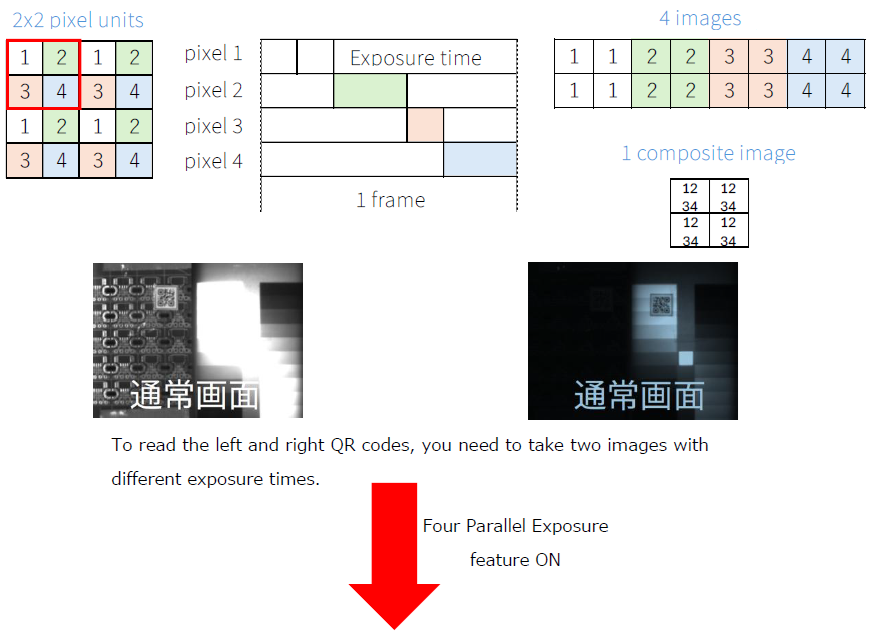

Shutter timing and exposure time can be set independently for each 2×2 (4-pixel) unit.
Exposure start timing can be staggered during image capture.
Output can be either four separate images or one combined image.
 |
 |
| M12 Mount | M12 Mount L Angle |
Models
| Lens Mount | Model |
|---|---|
| M12 | ID3M2B-MDL-U（Monochrome） |
| ID3M2C-MDL-U（Color） |
Specifications
| Model | Compact USB Camera Module 3.2 Megapixels | |
|---|---|---|
| Output Interface | USB2.0 / USB3.0 | |
| Image Sensor | Global Shutter Sony IMX900 | |
| Optical Format | 1/3 inch (φ5.81mm) | |
| Pixel Size | 2.25μm x 2.25μm | |
| Effective Pixels | 2,064(H) x 1,592(V) | |
| Pixel Clock | 74.25MHz | |
| Frame Rate | USB2.0 : 5.4fps / USB3.0 : 27.8fps | |
| Gain | 0～+12db | |
| Shutter Speed | USB2.0 : off～1/9,000s / USB3.0 : off～1/47,000s | |
| Trigger Mode | Normal / Fixed Shutter / Pulse Width Trigger | |
| Signal Output Format | USB2.0 / USB3.0 | |
| UVC (YUV-RAW) / Y8(RAW) | ||
| Output Connector | USB3.0 Micro-B | |
| Lens Mount | M12 | |
| Power Supply / External Trigger Input Connector | USB bus powered / BM04B-SRSS-TB(JST) | |
| Power Consumption | 1.1W max | |
Spectral Sensitivity Characteristics
ID3M2B-MDL-U
ID3M2C-MDL-U
Dimensions
Straight type : ID3M2B/C-MDL-U
L Angle type ID3M2B/C-MDL(L)-U
Download Datasheet
●ID3M2-MDL-U
DOC-0207-00_ID3M2-MDL-U.pdf（PDF:733kbyte）
