Overview
The ID12M Series are a series of cameras of 12 Mega Pixel(12M pixel)and the ID50M series are of 48Mega Pixel(48M pixel)with CMOSIS high-speed CMOS sensor and the Cameralink™ interface.
 |
 |
 |

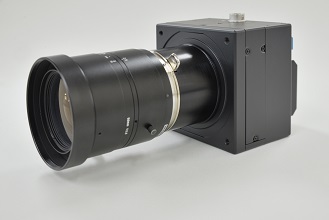

| ID12MB-CL | ID12MB-CL Rear side | ID50MB-CL |
Fundamental Specification
| Model Number | CMOSIS 12M Pixel ID12MB-CL(Mono) ID12MC-CL(Raw color) |
CMOSIS 48M Pixel ID50MB-CL(Mono) ID50MC-CL(Raw color) |
|---|---|---|
| Output Interface | Camera Link Full or PoCL Full | |
| Image Sensor | Global Shutter CMOSIS CMV12000 | Global Shutter CMOSIS CMV50000 |
| Image Circle | APS-like Φ28.16mm size | 36.4 x 27.6mm Φ45.717mm size |
| Pixel Size | 5.5μm x 5.5μm | 4.6μm x 4.6μm |
| Image Output | Effective Pixel 4,096(H) x 3,072(V) | Effective Pixel 7,920(H) x 6,004(V) |
| Pixel Clock | 68MHz | 80MHz |
| Output Format | Mono 8/10bit, Raw color 8/10bit | |
| Frame Rate （To be accelerated by adjusting vertical line number） |
Base 2Tap : 11fps Medium 4Tap : 22fps Full 8Tap : 42fps |
Medium 4Tap : 6.4fps Full 8Tap : 12.8fps |
| Gain | 0～+12db(warrant coverage) | |
| Shutter Speed | off(1/11s)～1/17,000s | off～1/6,300s |
| Partial Scan | ROI:32area | |
| Trigger Mode | Fixed shutter trigger mode, plus width shutter trigger mode | |
| Signal Output | Camera Link Base / Medium / Full PoCL Base / Medium / Full |
Camera Link Full or PoCL Full |
| Signal Output Connector | Camera Link 2ch/ PoCL SDR26pin 2ch | |
| Lens Mount | M42 Mount/ F Mount adaptor | M58 Mount/ F Mount adaptor |
| External Trigger Inputs | PoCL or Hirose 12pin(Default Factory setting) | |
| Power Voltage | DC12V±10% | |
| Power Consumption | max. 4.5W or below | max. 7.0W or below |
| Size(excluding projections) | 55mm x 55mm x 30mm | 85mm x 85mm x 60mm |
| Weight | 120g | 500g |
| Environment | Temperature -5～+45℃ Humidity 20～85％RH Non condensation | |
ID12Mx-CL Spectral Response
※Excludes lens and light source characteristics.
Monochrome
Color

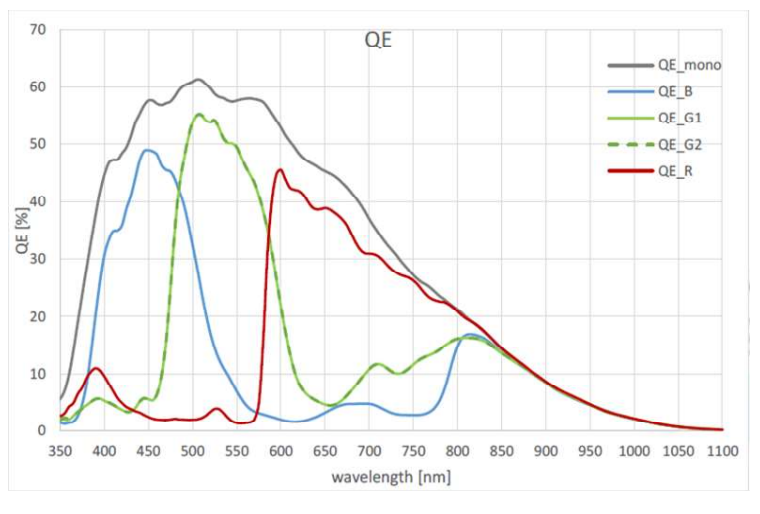

ID50Mx-CL Spectral Response
ID12Mx-CL Dimensions

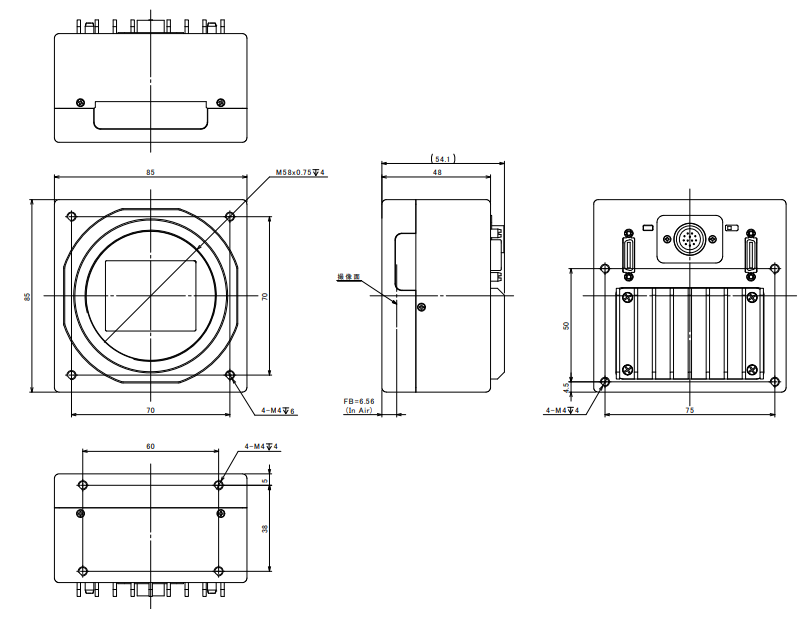

ID50Mx-CL Dimensions
Download (Technical Manual)
●ID12Mx-CL
DOC-0002-01_ID12M-CL_E_20150713_2.pdf（PDF:980kb）
●ID50Mx-CL
ID50M-CL_E_20210318.pdf（PDF:1Mb）
