Camera Link™ I/F 3.2M Pixel(3.2M) 5M Pixel(5M) Camera

Camera Link™ I/F 3.2M / 5M

Overview

The ID3M series is a 3.2-megapixel (3.2Mpixel) camera, and the ID5M series is a 5-megapixel (5Mpixel) camera. Both series utilize Sony Pregius sensors IMX265/IMX264/IMX900 and are compatible with the Camera Link™ interface. These cameras are capable of 12-bit resolution video output.
The ID3M2B-CL is equipped with Four Parallel Exposure.

ID5MB-CL ID5MB-CL Rear side

Fundamental Specification

Model Number SONY 3.2Mega Pixel(3.2M)
ID3MB-CL(Mono)
ID3MC-CL(Raw color)
SONY 3.2Mega Pixel(3M2)
ID3M2B-CL(Mono)
ID3M2C-CL(Raw color)
SONY 5M Pixel
ID5MB-CL(Mono)
ID5MC-CL(Raw color)
Output Interface Camera Link Base or PoCL Base
Image Sensor Global shutter SONY IMX265 Global Shutter SONY IMX900 Global Shutter SONY IMX264
Image Circle 1/1.8inch Φ8.91mm size Φ5.81mm 2/3inch Φ11.09mm size
Pixel Size 3.45μm x 3.45μm 2.25μm x 2.25μm 3.45μm x 3.45μm
Image Output Effective Pixel 2,064(H) x 1,544(V) Effective Pixel 2,064(H) x 1,552(V) Effective Pixel 2,464(H) x 2,056(V)
Pixel Clock 66MHz / 85MHz 85MHz 66MHz / 85MHz
Output Format Mono 8/10 /12bit、Raw color 8/10 /12bit
Frame Rate
(To be accelerated by adjusting vertical line number)
Base 2Tap(66MHz) : 40.2fps
Base 2Tap(85MHz) : 51.7fps
Base 3Tap : 55.6fps
Base 2Tap(66MHz) : 48.8fps
Base 3Tap : 54.75 / 72.2(HS Mode)fps
Base 2Tap(66MHz) : 25.5fps
Base 2Tap(85MHz) : 32.8fps
Base 3Tap : 35.6fps
Gain 0~+12db
Shutter Speed off~1/40,000s off~1/37,000s
Partial Scan ROI :1 area (Min. 4line)
Trigger Mode Fixed shutter trigger mode, plus width shutter trigger mode
Signal Output Camera Link Base or PoCL Base
Signal Output Connector Camera Link / PoCL SDR26pin
Lens Mount C Mount
External Trigger Inputs PoCL or Hirose 12pin
Power Voltage DC12V±10%
Power Consumption Typ. 1.5W or below. max. 1.8W or below
Size(excluding projections) 29mm x 29mm x 29mm
Weight 50g
Environment Temperature -5~+45℃ Humidity 20~85%RH, No condensation

Four Parallel Exposure Function

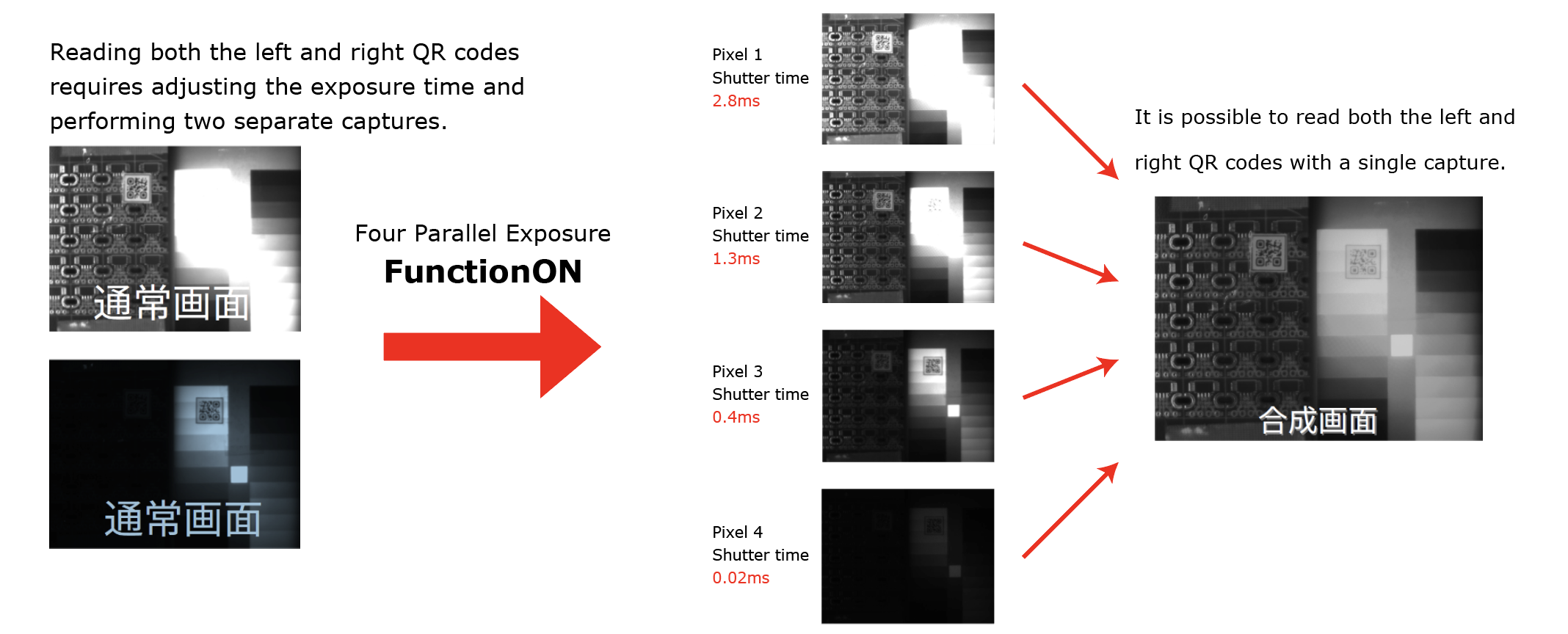

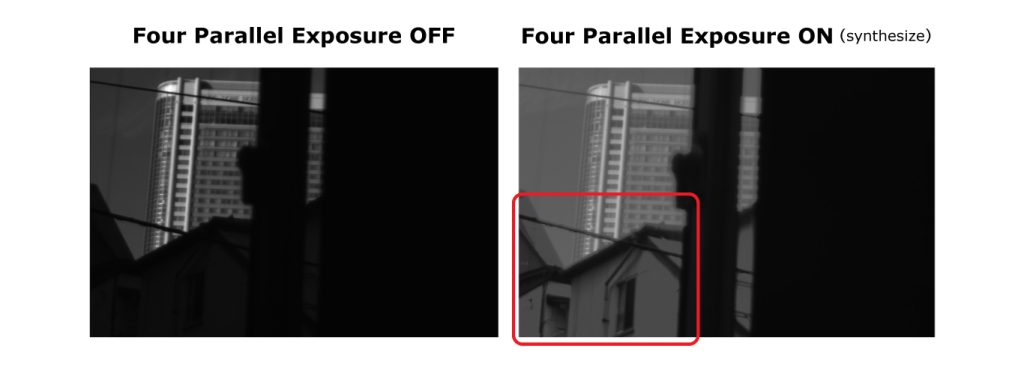

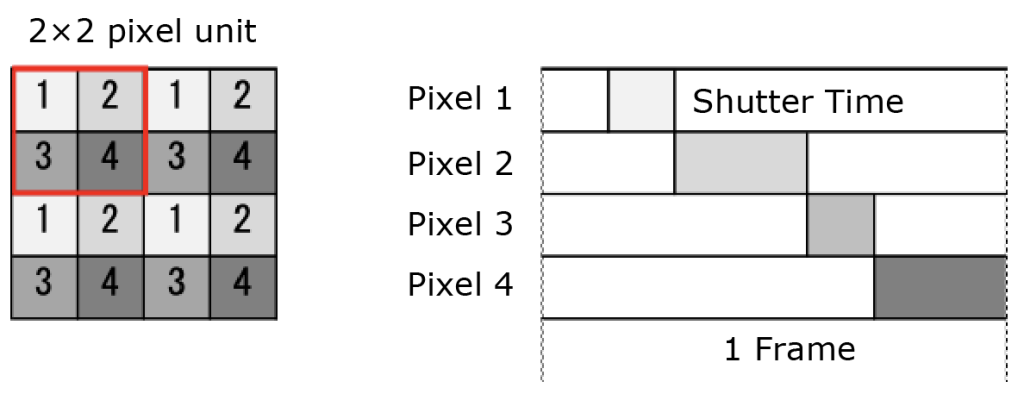

Each 2×2 pixel block allows for independent configuration of shutter timing and exposure duration. It is also possible to shift the exposure start time for each block and output the resulting images. At the time of output, users can choose either four separate images or one composite image.


Spectral Response

※Excludes lens and light source characteristics.

ID3M/5M series

Monochrome Color

ID3M2 series

Monochrome Color

Dimensions

Download (Technical Manual)

●ID3M Series
ID3MCL_20220623_en.pdf(PDF:1,006kb)
DOC-0199-01_English_ID3M2CL.pdf(PDF:1,520kb)

●ID5M Series
ID5MCL_20220623_en.pdf(PDF:1,006kb)

Software Download

iDule Control Panel
iDuleControl2
