Compact Head Separate Global Shutter CMOS Camera
Overview

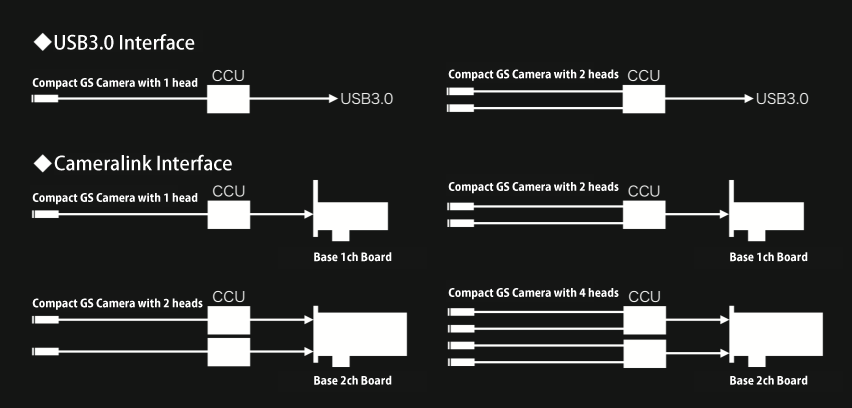

ID1M Series are head-separated compact Global Shutter cameras with 1.2M pixel AR135 resolution and M12/M10.5 lens mount. The two types of camera output, USB3.0 and the Cameralink interface, are supported. You may let CCU (Camera Control Unit) host two camera heads synchronized as single frame.In addition, a camera head cable compatible with a detachable robot cable has also been added.
Features
・Compact GS Camera with the 14mmφ body
・2-head-synchronized capturing
・Two Types (USB and Camera Link)of camera output supported
・Detachable robot cable compatible model
 |
 |
| ID1MB-UCL(Straight) | ID1MB-UCL(L-angle) |
 |
 |
| ID1Mx-UCL | ID1Mxx2-UCL |
 |
|
| Camera head cable compatible with a detachable |
Model name
| Normal Cable | Robot Cable |
|---|---|
| ID1MB-UCL (Mono / Pen) | ID1MB-RC-UCL (Mono / Pen) |
| ID1MC-UCL (Color / Pen) | ID1MC-RC-UCL (Color / Pen) |
| ID1MB-L-UCL (Mono / L) | ID1MB-L-RC-UCL (Mono / L) |
| ID1MC-L-UCL (Color/ L) | ID1MC-L-RC-UCL (Color/ L) |
| ID1MBx2-UCL (Mono / Pen / 2head) | ID1MBx2-RC-UCL (Mono / Pen / 2head) |
| ID1MCx2-UCL (Color / Pen / 2head) | ID1MCx2-RC-UCL (Color / Pen / 2head) |
| ID1MBx2-L-UCL (Mono / L / 2head) | ID1MBx2-L-RC-UCL (Mono / L / 2head) |
| ID1MCx2-L-UCL (Color / L / 2head) | ID1MCx2-L-RC-UCL (Color / L / 2head) |
Basic specifications
| Camera Type | 1.2M Pixel 1 Head Type | |
|---|---|---|
| Output Interface | USB3.0 | Camera Link Base or PoCL Base |
| Image Sensor | Global Shutter Onsemi AR0135 | |
| Image Circle | 1/3inch φ6.0mm size | |
| Pixel Size | 3.75μm x 3.75μm | |
| Image Output | Effective Pixel 1,284(H) x 962(V) | |
| Pixel Clock | 72.5MHz | |
| Output Format | Mono 8bit(10/12bit TBD) Raw color 8bit(10/12bit TBD) YUV8bit |
Camera Link Base configuration Mono 8/10/12bit Raw color 8/10/12bit YUV8/10/12bit・RGB8bit |
| Frame Rate （To be accelerated by adjusting vertical line number） |
USB2.0 : 15fps USB3.0 : 54fps CL Base 2tap : 54fps |
|
| Gain | 0～+12db | |
| Shutter Speed | off～1/40,000s | |
| Partial Scan | ROI : 1 area (Min. 1line) | |
| Trigger Mode | Fixed shutter trigger mode, plus width shutter trigger mode | |
| Signal Output | USB3.0 UVC Driver Support |
CameraLink Base or PoCL Base 1TAP/2TAP/3TAP |
| Signal Output Connector | USB3.0 Micro B Connector | Camera Link / PoCL SDR26pin |
| Lens Mount | M12 Mount(Standard)、M10.5 Mount(Converted) | |
| External Trigger Inputs | USB3.0 or Hirose 12pin | Camera Link or Hirose 12pin |
| Power Voltage | DC12V±10% | |
| Power Consumption | max. 2.5W or below | |
| Camera Size | Camera Head(Straight): φ14mm W 54(57.5)mm / CCU：W 96mm D 50mm H 25mm(excluding projection) | |
| Camera Head Cable | Camera Head Cable：Standaerd 2m(Supports up to 8m) | |
| Weight | Camera Head about 7g(excluding lens and cables) | |
| Environment | Temperature-5～+45℃ Humidity20～85％RH, No condensation | |
| Camera Type | 1.2M Pixel 2 Head Type | |
|---|---|---|
| Output Interface | USB3.0 | Camera Link Base or PoCL Base |
| Image Sensor | Global Shutter Onsemi AR0135 x 2 Head | |
| Image Circle | 1/3 inch φ6.0mm size | |
| Pixel Size | 3.75μm x 3.75μm | |
| Image Output | Effective Pixel 2,568(H) x 962(V) | |
| Pixel Clock | 72.5MHz | |
| Output Format | Mono 8bit Raw color 8bit YUV8bit |
Camera Link Base 2TAP Mono 8/10/12bit Raw color 8/10/12bit |
| Frame Rate （To be accelerated by adjusting vertical line number） |
USB2.0 : 7.5fps USB3.0 : 29fps CL Base 2tap : 54fps |
|
| Gain | 0～+12db | |
| Shutter Speed | off～1/40,000s | |
| Partial Scan | ROI : 1 area (Min. 4line) | |
| Trigger Mode | Fixed shutter trigger mode, plus width shutter trigger mode | |
| Signal Output | USB3.0 UVC Driver Support |
CameraLink Base or PoCL Base 1TAP / 2TAP / 3TAP |
| Signal Output Connector | USB3.0 Micro B Connector | Camera Link / PoCL SDR26pin |
| Lens Mount | M12 Mount(Standard)、M10.5 Mount(Converted) | |
| External Trigger Inputs | USB3.0 or Hirose 12pin | Camera Link or Hirose12pin |
| Power Voltage | DC12V±10% | |
| Power Consumption | max. 2.5W or below | |
| Camera Size | Camera Head(Straight)：φ14mm W 54(57.5)mm / CCU：W 96mm D 50mm H 25mm(excluding projection) | |
| Camera Head Cable | Camera Head Cable：Standard 2m(Supports up to 8m) | |
| Weight | Camera Head : about 7g x 2Head (excluding lens and cables) | |
| Environment | Temperature -5～+45℃ Humidity20～85％RH, No condensation | |
Download (Technical Manual)
●ID1MUCL
ID1MUCL_20190123_en.pdf（PDF:1,165kb）
●ID1Mx2UCL
ID1Mx2UCL_20190123_en.pdf（PDF:1,189kb）
●ID1MRCUCL
ID1M_RC_UCL_20190702_en.pdf（PDF:1,050kb）
●ID1Mx2RCUCL
ID1Mx2-RC-UCL_20190702_en.pdf（PDF:1,120kb）
●L-CHU_dimensions
L-CHU_dimensions.pdf（PDF:116kb）
Software Download
SDK for Compact Head Separate Camera[ID1Mx-UCL]
ID1Mx-UCL_SampleSrcV102b_JPN_ENG
